More Labsphere Products
Handheld Instruments
Spectralon® Reflectance Materials
More Products and Services
Handheld Instruments

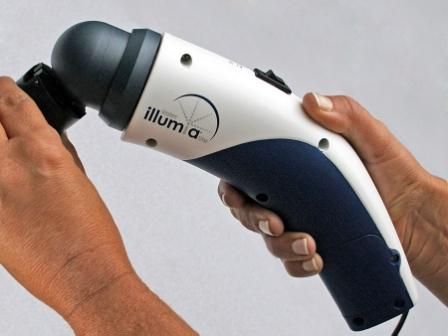

illumia®lite
For Spectral Flux Measurement of LEDs and luminaires
4 cm integrating sphere
Measure up to 1 cm sources
Wavelength range: 380 nm to 820 nm
Luminous flux range: 0.1 lumens to 5,000 lumens
Sefl-absorption correction by built-in auxiliary lamp
USB connection and software for your computer
For Spectral Flux Measurement of LEDs and luminaires
4 cm integrating sphere
Measure up to 1 cm sources
Wavelength range: 380 nm to 820 nm
Luminous flux range: 0.1 lumens to 5,000 lumens
Sefl-absorption correction by built-in auxiliary lamp
USB connection and software for your computer

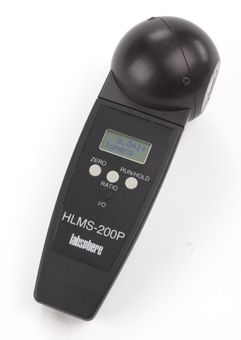

HLMS-200P Handheld Photometer
For measuring LEDs, small lamps, fiber illuminators
2" (5.08 cm) integrating sphere, with 1/2" diameter entrance port
Photopically filtered silicon detector for spectral correction
Luminous flux range: 0.5 to 7,000 lumens
NIST-traceable calibration with certificate
1/4-20 or M6 mounting boss
For measuring LEDs, small lamps, fiber illuminators
2" (5.08 cm) integrating sphere, with 1/2" diameter entrance port
Photopically filtered silicon detector for spectral correction
Luminous flux range: 0.5 to 7,000 lumens
NIST-traceable calibration with certificate
1/4-20 or M6 mounting boss
For data sheets, technical papers and pricing
contact HMS Technology Sales
Spectralon® Diffuse Reflectance Materials
> 99% diffuse reflectance
Extremely Lambertian
Chemically inert
Thermally stable
Environmentally stable, hydrophobic
NIST-traceable calibration
Can be machined into a wide variety of shapes according to
design specifications
Optical Grade Spectralon®
Applications
Optical components
Densitometer standards
Remote sensing targets
Space Grade Spectralon®
Applications
Solar illuminated diffuse panels
Radiance calibration standards
Calibration targets
Integrating sphere uniform sources
Resistant to UV degradation
Special cleaning, baking, inspection, handling, and packaging with
full documentation of the process
Each piece undergoes rigorous mechanical and spectroscopic analysis
Extremely Lambertian
Chemically inert
Thermally stable
Environmentally stable, hydrophobic
NIST-traceable calibration
Can be machined into a wide variety of shapes according to
design specifications
Optical Grade Spectralon®
Applications
Optical components
Densitometer standards
Remote sensing targets
Space Grade Spectralon®
Applications
Solar illuminated diffuse panels
Radiance calibration standards
Calibration targets
Integrating sphere uniform sources
Resistant to UV degradation
Special cleaning, baking, inspection, handling, and packaging with
full documentation of the process
Each piece undergoes rigorous mechanical and spectroscopic analysis
For more details, see Labsphere's
Technical Guide-Reflectance Materials and Coatings
For data sheets, technical papers and pricing contact HMS Technology Sales
For data sheets, technical papers and pricing contact HMS Technology Sales
More Spheres, Systems, Materials and Calibration
From very small to very large spheres, Labsphere has solutions
Vacuum-compatible uniform sources
Very low-luminance uniform sources
Solar simulators
Large, water-cooled gold laser measurement spheres
Reflectance/Transmittance/Quantum Efficiency measurement spheres
Laser speckle-removal or reduction applications
OEM spheres and systems
Design and manufacturing of parts with diffuse reflectance materials
NIST-traceable calibration services
ISO-9001:2000 certified quality management system
and much more.....
Vacuum-compatible uniform sources
Very low-luminance uniform sources
Solar simulators
Large, water-cooled gold laser measurement spheres
Reflectance/Transmittance/Quantum Efficiency measurement spheres
Laser speckle-removal or reduction applications
OEM spheres and systems
Design and manufacturing of parts with diffuse reflectance materials
NIST-traceable calibration services
ISO-9001:2000 certified quality management system
and much more.....
Example of Reflectance/Transmittance sphere
Measure solids, thin films, powders, liquids
Spectralon® for 300 - 2400 nm, Infragold® for 0.7 - 20 µm
9° double-beam and single-beam geometries
Specular-included or specular-excluded (with specular light trap)
reflectance measurements
Measurement of forward scattering and back scattering
Sample holders: jaw-style, clip-style, cuvette-style
Spectralon® for 300 - 2400 nm, Infragold® for 0.7 - 20 µm
9° double-beam and single-beam geometries
Specular-included or specular-excluded (with specular light trap)
reflectance measurements
Measurement of forward scattering and back scattering
Sample holders: jaw-style, clip-style, cuvette-style
For data sheets, technical papers and pricing
contact HMS Technology Sales
