New Integral® Light Measurement software for
illumia® plus sphere system
To download an Integral® software brochure
click here
Also: New LM-82 accessory for illumia® plus sphere system
Ambient temperature control module for LM-82 including:
thermal chamber, temperature sensors, and software
Ambient temperature control module for LM-82 including:
thermal chamber, temperature sensors, and software
Other sphere products:
illumia®pro for thermal testing of packaged LEDs
And:
HalfMoon system
For more information
contact HMS Technology Sales
illumia®plus sphere systems for lamp and luminaire measurement
Measure:
Total spectral flux
Luminous flux
Radiant flux
Chromaticity
CCT and CRI
Peak wavelength
Dominant wavelength
I, V, and luminous efficiency
Six sizes: 25, 50, 100, 165, 195, 300 cm interior diameters
Spectraflect® diffuse coating: 250 nm to 2500 nm
Base up or base down lamp mounting
Temperature sensor mounting port
Absorption correction lamp port
Absorption correction lamp baffle
Three spectrometer choices
Mini CCD array spectrometer with broad spectral
ranges: 200-850 nm and 350-1050 nm
Crossed Czerny-Turner spectrograph with electrically
cooled, back-thinned CCD detector for efficient
stray light rejection
Integrated shutter for real-time dark correction
Multi-channel
High-speed, best-in-class CCD array spectrometer
Greatest accuracy, reliability and speed for
manufacturing environments
Spectraflect® diffuse coating: 250 nm to 2500 nm
Base up or base down lamp mounting
Temperature sensor mounting port
Absorption correction lamp port
Absorption correction lamp baffle
Three spectrometer choices
Mini CCD array spectrometer with broad spectral
ranges: 200-850 nm and 350-1050 nm
Crossed Czerny-Turner spectrograph with electrically
cooled, back-thinned CCD detector for efficient
stray light rejection
Integrated shutter for real-time dark correction
Multi-channel
High-speed, best-in-class CCD array spectrometer
Greatest accuracy, reliability and speed for
manufacturing environments
Lamps
NIST-traceable calibration lamp for accurate total
luminous flux and total spectral flux
Each lamp screened, seasoned and calibrated
NIST-traceable certificate provided with each lamp
Auxiliary lamp for self-absorption correction
Compensates for errrors due to size, shape
and color of device under test
Compatible with Labsphere current-regulated lamp
power supplies and Integral® software
NIST-traceable calibration lamp for accurate total
luminous flux and total spectral flux
Each lamp screened, seasoned and calibrated
NIST-traceable certificate provided with each lamp
Auxiliary lamp for self-absorption correction
Compensates for errrors due to size, shape
and color of device under test
Compatible with Labsphere current-regulated lamp
power supplies and Integral® software
Power supplies
Preset regulated DC current
Fast, controlled current ramp up
Lamp operation timer
Front panel or remote TTL control
Single supply or multi-power applications
Rack-mount or stand-alone
Use for light measurement or sensor calibration
Preset regulated DC current
Fast, controlled current ramp up
Lamp operation timer
Front panel or remote TTL control
Single supply or multi-power applications
Rack-mount or stand-alone
Use for light measurement or sensor calibration
Also: New LM-82 accessory for illumia® plus system
Ambient temperature control module for LM-82 including:
thermal chamber, temperature sensors, and software
thermal chamber, temperature sensors, and software
Integral® software: Flexible and Modular
Fully compliant with LM-79 procedures
Access and operate the sphere system remotely from
a computer, tablet or smart phone
Supports various: spectrometers, power supplies,
temperature controllers and monitors
Hot swap stabilized test lamps and luminaires
Automated functions
Multiple users and individual user profiles
Optional Application Programming Interface (API) for
custom programming in LabVIEW, .NET, C, VBA
Export data to XML format
Test reports and custom test report generator
Access and operate the sphere system remotely from
a computer, tablet or smart phone
Supports various: spectrometers, power supplies,
temperature controllers and monitors
Hot swap stabilized test lamps and luminaires
Automated functions
Multiple users and individual user profiles
Optional Application Programming Interface (API) for
custom programming in LabVIEW, .NET, C, VBA
Export data to XML format
Test reports and custom test report generator
To download an Integral® software brochure
click here
For more information contact HMS Technology Sales
For more information contact HMS Technology Sales
illumia®pro sphere system for thermal and electrical
analysis of packaged LEDs, modules & arrays, backlight displays, and solid-state lighting
analysis of packaged LEDs, modules & arrays, backlight displays, and solid-state lighting
Measure:
Electrial: I, V, Electrical watts
Optical: Flux, Color, Luminous efficiency
Thermal: Case temperature control vs electrical
and optical parameters
Conforms to IESNA, LM-79 and LM-80
Sphere sizes: 25 cm to 195 cm interior diameters
Spectraflect® diffuse coating: 250 nm to 2500 nm
SMS-500/510 mini CCD array spectrometers
Calibrated ranges 360-1000 nm and 300-1050 nm
Communicates with Labsphere illumia®pro software
Multi-channel
Measurement funtions of illumia® pro
ILV @ constant T: step & control I, stabilize T, measure L&V
VLI @ constant T: step & control V, stabilize T, measure L&I
TLV @ constant I: step & control T, stabilize T, measure L&V
TLI @ constant V: step & control T, stabilize T, measure L&I
ILV/T: perform ILV @ constant T, step T, repeat at each T
VLI/T: perform VLI @ constant T, step T, repeat at each T
VLI @ constant T: step & control V, stabilize T, measure L&I
TLV @ constant I: step & control T, stabilize T, measure L&V
TLI @ constant V: step & control T, stabilize T, measure L&I
ILV/T: perform ILV @ constant T, step T, repeat at each T
VLI/T: perform VLI @ constant T, step T, repeat at each T
Keithley® 2400 Sourcemeter
Low-noise, stable DC power supply and accurate multimeter
Required to operate illumina®pro systems
Purchase from Labsphere, or provide your own
Low-noise, stable DC power supply and accurate multimeter
Required to operate illumina®pro systems
Purchase from Labsphere, or provide your own
Lamps
Calibration lamp for accurate total luminous flux
and total spectral flux
Each lamp screened, seasoned and calibrated
NIST-traceable certificate provided with each lamp
Auxiliary lamp for self-absorption correction
Compensates for errors due to size and shape
of device under test
Compatible with Labsphere current-regulated lamp
power supplies
Calibration lamp for accurate total luminous flux
and total spectral flux
Each lamp screened, seasoned and calibrated
NIST-traceable certificate provided with each lamp
Auxiliary lamp for self-absorption correction
Compensates for errors due to size and shape
of device under test
Compatible with Labsphere current-regulated lamp
power supplies
Agilent® A3634A DC Power Supply
Dual output to drive both calibration lamp and
auxiliary correction lamp
Required to operate illumina®pro systems
Purchase from Labsphere, or provide your own
Dual output to drive both calibration lamp and
auxiliary correction lamp
Required to operate illumina®pro systems
Purchase from Labsphere, or provide your own

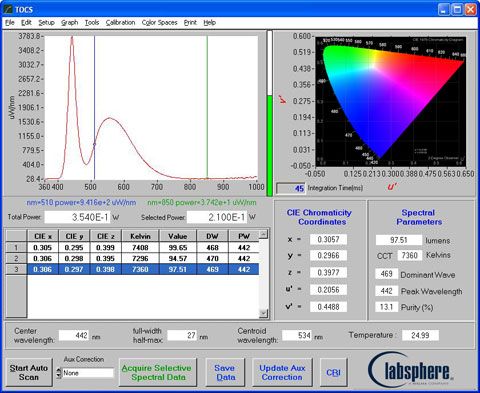

illumia®pro software
Measures device under test over a wide range of
temperatures
Controls LED temperature and current at specified ranges
Automates procedures for measuring spectral characteristics
and controlling temperature and current
Software displays electrical, optical and thermal data
Exports data to Excel®
Measures device under test over a wide range of
temperatures
Controls LED temperature and current at specified ranges
Automates procedures for measuring spectral characteristics
and controlling temperature and current
Software displays electrical, optical and thermal data
Exports data to Excel®
For data sheets, technical papers and pricing
contact HMS Technology Sales

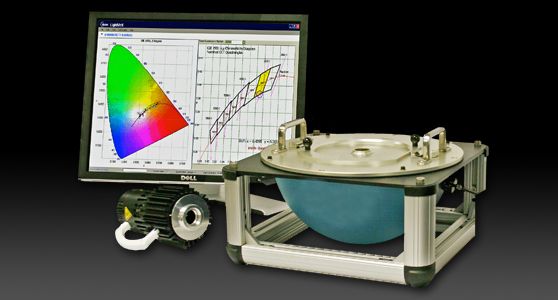

HMS-Series HalfMoon systems
Measure forward flux of solid-state lighting while reducing
thermal management issues
Sample and drive electronics mounted outside the sphere to
reduce stabilization time
Plane mirror inside sphere at equator simulates full sphere
Includes CDS-2100 array spectrometer with back-thinned,
TE-cooled, CCD sensor for accurate luminous flux and color
temperature measurement. More accurate than a filter
photometer

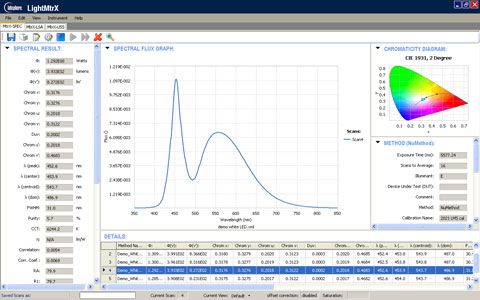

Operates with Labsphere LightMtrX software
Sizes: 12" (31 cm), 20" (50 cm), 40" (103 cm)
thermal management issues
Sample and drive electronics mounted outside the sphere to
reduce stabilization time
Plane mirror inside sphere at equator simulates full sphere
Includes CDS-2100 array spectrometer with back-thinned,
TE-cooled, CCD sensor for accurate luminous flux and color
temperature measurement. More accurate than a filter
photometer
Operates with Labsphere LightMtrX software
Sizes: 12" (31 cm), 20" (50 cm), 40" (103 cm)
To download a HalfMoon sphere data sheet
click here
Example of Backlight Testing
Measure total flux of displays and LED arrays
Contact us for other specific application requirements
Contact us for other specific application requirements
