With Labsphere general purpose spheres, you
can select size, ports, reflectance material, and
accessories for light measurement or
uniform source applications.

Sizes and Ports

1" to 6" interior diameters
3 or 4 ports (entrance, 90°, north pole, 180°)

Reflectance Materials

Spectraflect^®
Near Lambertian: 350 nm to 2400 nm
Reflectivity 96-98 % @ 600 nm
Thermally stable to 100° C
Laser damage threshold 1.7 J/cm²
Water soluable, spray diffuse coating

Spectralon^®
Highly Lambertian: 250 nm to 2500 nm
Reflectivity > 99 % from 400 nm to 1500 nm
Reflectivity > 95 % from 250 nm to 2500 nm
UV resistant
Thermally stable to > 350° C
Hydrophobic, machined diffuse thermoplastic resin

Infragold^®
Highly Lambertian: 0.7 µm to 20 µm
Reflectivity > 92-96 % from 1 µm to 16 µm
Reflectivity > 94 % at longer than 1 µm
Laser damage threshold 19.3 J/cm² @ 10.6 µm
Can be water cooled for even greater damage threshold
Exellent vacuum stability
Electrostatically plated, diffuse, gold metallic coating

For data sheets, technical papers and pricing contact HMS Technology Sales

Accessories

Port accessories
Port reducers
Port plugs
Port adapters
Cone diffusers
Cone baffle assemblies
Spectraflect^®, Spectralon^® & Infragold^®
diffuse materials
Easily mounts to port frame

Fiber adapters
SMA, FC/PC, ST, SC
Easily mounts to sphere port

Detectors
Silicon: 190 nm to 1100 nm
Photopic: 380 nm to 780 nm
Germainium: 800 nm to 1800 nm
Extended range
InGaAs: 800 nm to 2600 nm

Lamps
Calibration lamps for accurate total luminous flux
Absorption correction auxiliary lamps for photometry
Compatible with Labsphere current-regulated lamp
power supplies and LightMtrx software

Radiometers/Photometers
Communication hub for Labshere power supplies
Up to 100 programmable radiation calibrations
Labsphere will calibrate the SC6000 to monitor:
luminous flux, radiant flux, luminance, radiance
intensity, illuminance and irradiance
Use for camera calibration, lamp measurement,
laser power measurment, photometry

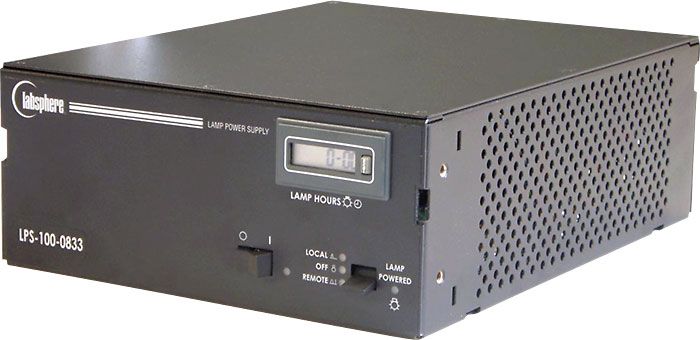

Power supplies
Preset regulated DC current
Fast, controlled current ramp up
Lamp operation timer
Front panel or remote TTL control
Single supply or multi-power applications
Rack-mount or stand-alone
Use for light measurement or sensor calibration

For data sheets, technical papers and pricing contact HMS Technology Sales
